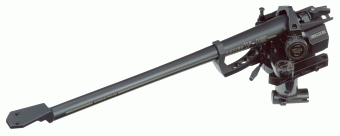

Magnesium Tone-armBased on the multi-award winning Series V pick-up arm, the Series V-12 incorporates the same design and engineering that have made SME a byword for excellence. Coherent musical control is held over the entire frequency range in terms of tonal quality, stability and stereo imaging. Startling dynamic range, neutrality, structurally inert, the Series V-12 embodies every worthwhile feature in a pick-up arm. * The 12 inch tone-arm is pressure die-cast in magnesium complete with an Integrated headshell to eliminate tone-arm resonances in the audio spectrum and offers a 27% reduction in maximum angular error distortion over 9 inch models. Listening: the benefits of minimal tracking error and harmonic distortion are clearly revealed.  *The 12in pressure die-cast tone-arm utilises the advantages of magnesium and exploits the reduction in maximum tracking error/distortion afforded by the greater arm length when compared with 9in models. *Internal constrained layer damps minute residual vibration leaving the tone-arm acoustically inert. *Fine machined cartridge platform, enamel free to avoid interface resonance. *Stainless steel cross shaft, ground and thread ground. Carried in massive yoke on �10mm precision ball races. Axes at record mean level to minimise warp-wow. *Dynamic balance. Graduated vertical tracking force control applies up to 3.0g x 0.125g VTF through resonance controlled spring. *Stainless steel vertical shaft, ground and thread ground, with integral �16mm flange to couple shaft and yoke. *�23mm steel pillar, heat treated, ground and honed, carries two �17mm precision ball races, widely spaced to resist tilt. *Anti-skate control operates through tension spring and filament. Dial corresponds with VTF and has a positive OFF position. *Lowering/raising control gives smooth positive action. Height of lift can be adjusted. *Subsonic lateral-mode damper can be instantly adjusted or cancelled. *Dual-lock base provides movement control with high rigidity. *Tungsten-alloy balance carried on two-point suspension. Extra-low inertia design assists warp riding. *Underslung weight housing corrects centre of gravity and provides non-reflective tone-arm termination. *Swiveling, damped output socket minimises vibration transmission in sub-chassis use. *Fine adjustment of horizontal tracking angle (HTA). *Reference lines on tone-arm facilitate VTA setting. *Fine adjustment of horizontal tracking angle (HTA). *Alignment protractor designed to provide HTA setting with greater accuracy. *Advanced jig/template system guarantees correct positioning.
DIMENSIONS A - Distance from pivot to stylus 308.80mm B - Distance from pivot to turntable center 295.60mm C - Cartridge fixing centres 12.70mm D - Offset Angle 17.62� E - Linear Offset 93.47mm F - Overhang 13.20mm G - Height above mounting surface max. 87.90mm min. 56.40mm H - Height of record surface above mounting surface max. 55.90mmmin. `24.40mm J - Depth below mounting surface 56.75mm K - Radial clearance for balance weight 73.00mm.
SPECIFICATIONS Effective Mass 12.0g Cartridge balance range 5.0-32.0g + One accessory weight - up to 26.5g + Two accessory weight - up to 32.0g Maximum tracking error 0.009�/mm Null points: Inner 66.04mm Outer 120.90mm Internal wiring: Ultra-flexible Silver litz Audio lead:Length 1.2m Weight net:815.0g
100 % Money Back Guarantee !As with all the products we sell. If your not 110% happy with the products & services you receive from us we will give you a 100% money back guarantee. On not only the price of the product but as well the cost of the shipping. That�s how confident we are in all the products we sell. Full Ten Year Warranty !When you purchase any of our new production SME products. Be it tonearms or turntables we give you a full ten year warranty. Bumper to bumper ! Short of leaving your turntable in the garden over the winter or using your tonearm as a pry bar to open a can of paint, we will cover what ever goes wrong with your newly purchased SME product. All we ask is that you retain your original receipt. We realize and understand that you have made an enormous investment in your analogue playback system & we want to reassure you that we will be there to stand behind it. The warranty we offer is unmatched and unrivaled in the analogue playback industry. We here at www.smetonearms.com have been rebuilding, rewiring & restoring SME arms for almost fifteen years now and SME England has been in business building tonearms & turntables for well over fifty years now & counting. I don't think either of us are going away !
Welcome to our hugely successful SME Trade In & Trade Up Program.
For more than a decade now our SME Trade In & Trade Up Program How it works is simple. You own an older SME arm and wish to move to a newer more advanced SME arm Not a problem.
Simply give us a call or send us an email & within a few short minutes We buy back your well loved SME arm or SME table and you get a brand new in the factory sealed box SME arm or SME table complete with our industry exclusive ten year warranty. Here are the trade in allowances we will give for your vintage SME tone arms. SME 3012 Series I – up to $1,500.00 We will also buy your older SME arms outright if you do not wish to trade your vintage SME arm in against a new replacement SME arm. Simply give us a call at 705-737-6773 or send us off an email through our contact section.    |
